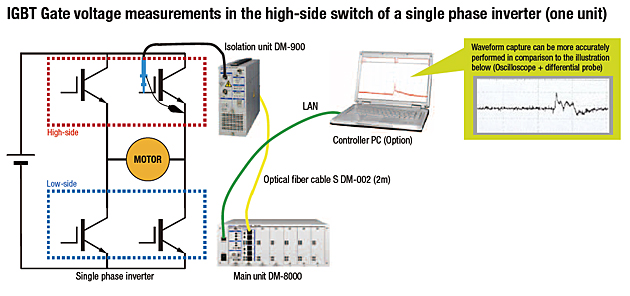

IGBT Gate voltage measurements in the high-side switch of
a single phase inverter (one unit)
System
configuration
Main unit |
DM-8000H |
1 |
Acquisition
control card |
DM-610A |
1 |
Transceiver
card (optical x 2) |
DM-600A |
1 |
Isolation unit
(500k points) |
DM-900A |
1 |
Optical fiber
cable S |
DM-002 (2m) |
1 |
IS viewer |
DM-800 |
1 |
Controller PC
(Option) |
|
1 |
|
|
IGBT Vce voltage measurements
in the high-side switch of single phase inverters
(four units)
System
configuration
Main unit |
DM-8000H |
1 |
Acquisition
control card |
DM-610A |
1 |
Transceiver
card (optical x 2) |
DM-600A |
2 |
Isolation unit
(500k points) |
DM-900A |
4 |
Optical fiber
cable S |
DM-004 (5m) |
4 |
IS viewer |
DM-800 |
1 |
Controller PC
(Option) |
|
1 |
|
|
IGBT Vce voltage & Ic current measurements of 3-phase, 2-level inverters
(twelve units)
System
configuration
Main unit |
DM-8000H |
1 |
Acquisition
control card |
DM-610A |
1 |
Transceiver
card (optical x 2) |
DM-600A |
6 |
Isolation unit
(500k points) |
DM-900A |
12 |
Optical fiber
cable S |
DM-004 (5m) |
12 |
IS viewer |
DM-800 |
1 |
Controller PC
(Option) |
|
1 |
|
|
